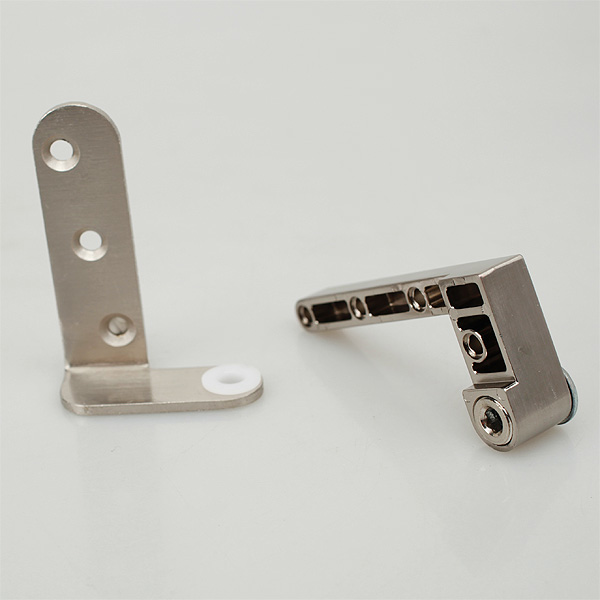

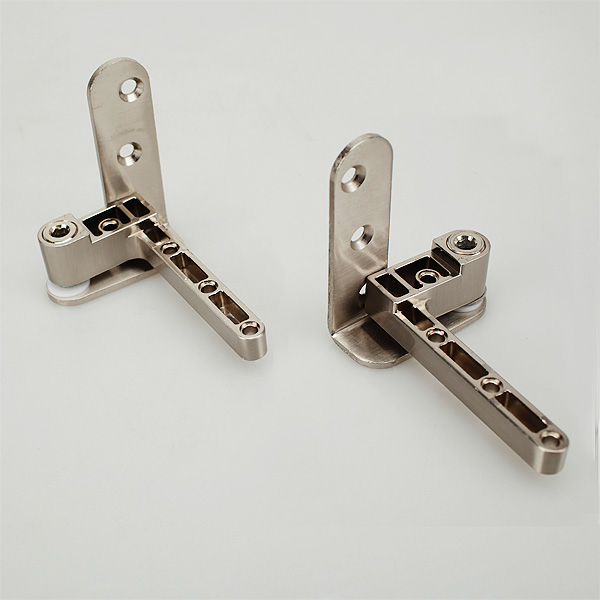

Model: C117C Product Name: Hidden axis hinge
Conditions
1.Suitable for doors in thickness  29-40MM
2.Max door height: 2200MM
3.Max door width: 900MM
4.Max door weight: 45KGS
5.The gap between the door and the door frame should be 4-5MM
6.Material: Stainless steel and Zinc alloy

Installation diagram
Download
Video
